PART E-002

Please note that not all items shown on the pictures may be included in the auction, and they are for presentation purposes only.  To determine items for sale please see reference in the section "Auction Includes".

Please check out my other auctions for more grat products and big savings.

Click to view super sized image

If you are not familiar with Arca Swiss camera support system please read article: Arca-Swiss (Arca-Type) Systems Explained at It will let you understand how system works, what will you need to get started or what should be next on your shopping list. Side also have some independent review products currently on the market. You can also visit my blog for more great ideas,  how to $ave and  new product information's. Review of my products can be also found at

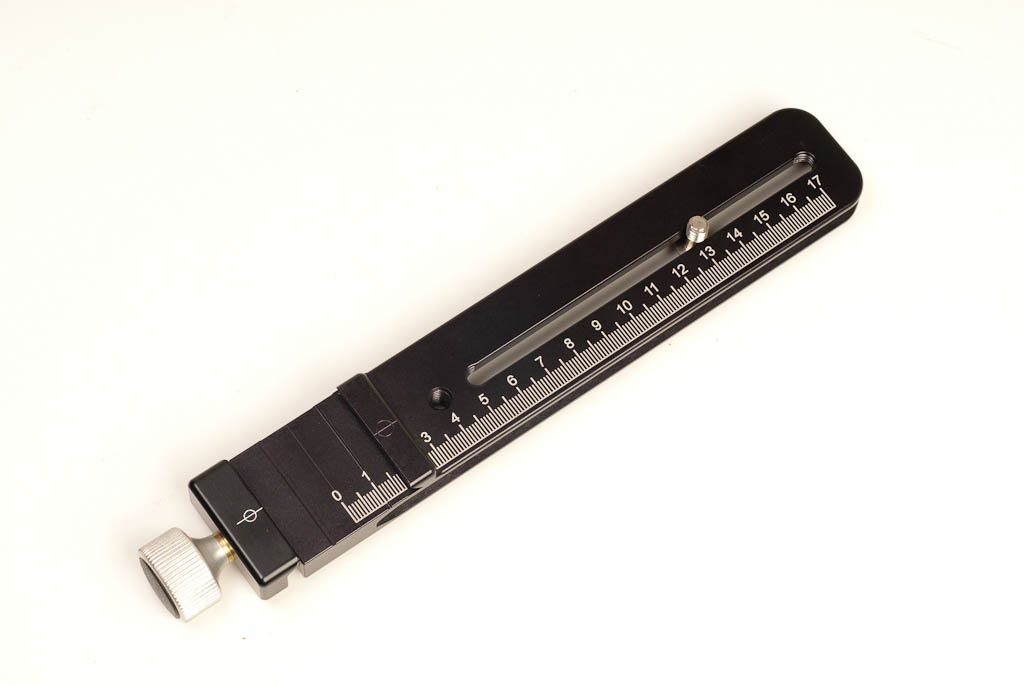

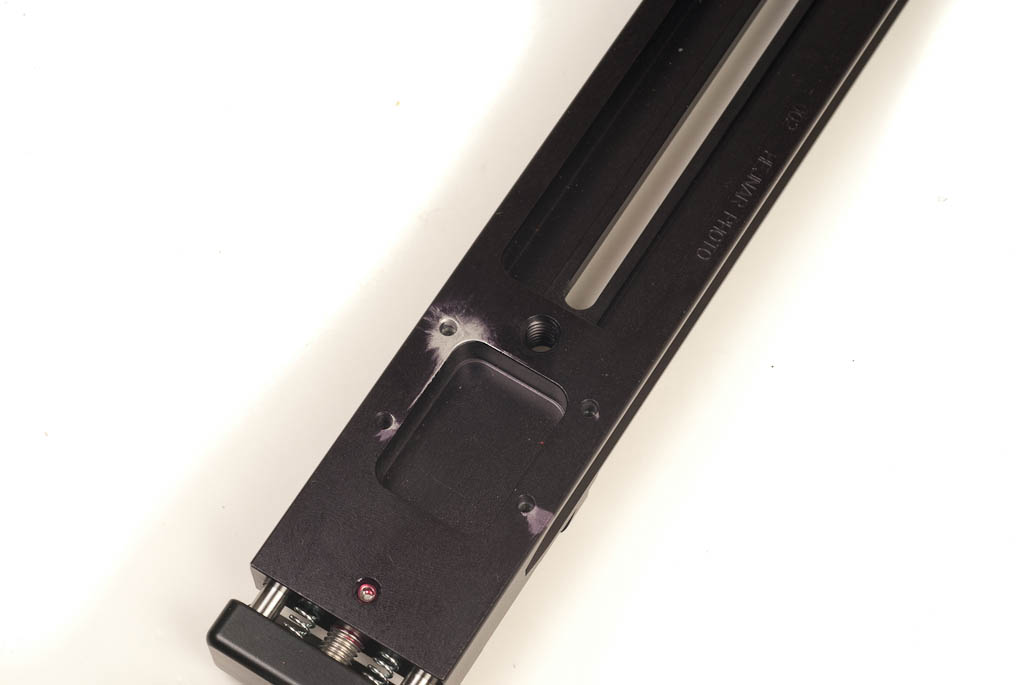

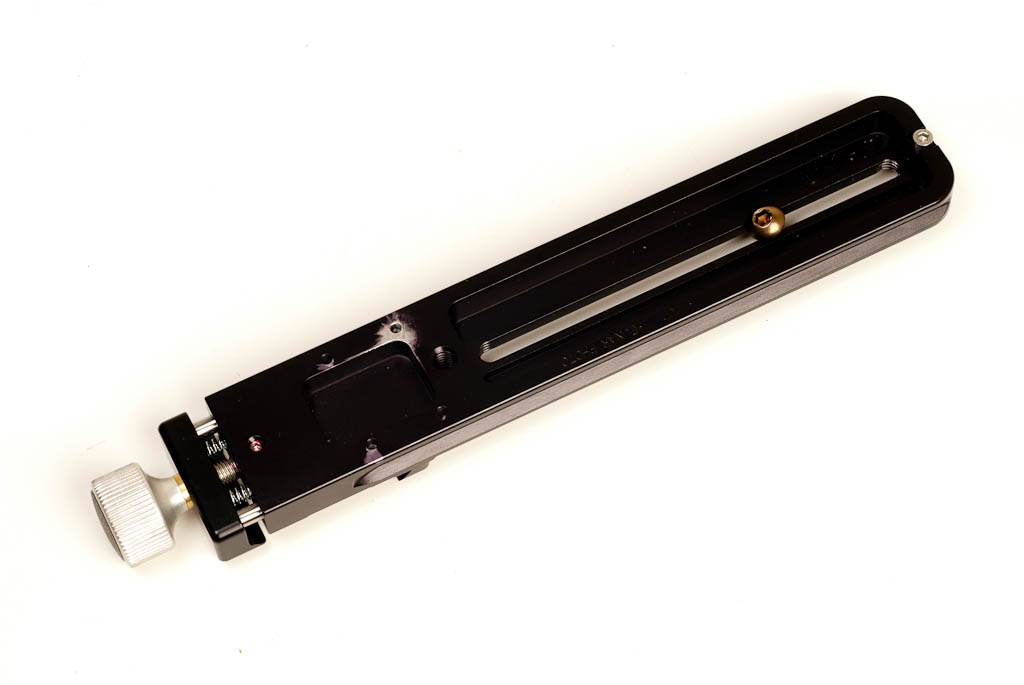

USED Hejnar Photo Nodal Slide. 8 inch rail with one captive slots and 1/4-20 tap hole. Metric scale engraved for references. Part has been previously used. It has same black surface missing here and there. Some due to normal use and some due to faulty anodizing process. Please inspact pictures before placing bid. It is the best quick release system for tripods when combined with Arca style ball head and clamps. This plate is designed to work with various ARCA TYPE quick release system:


  • 8.00 inch long
  • 1.5 inch wide
  • Weight 6.2oz (177g)
  • One captive style slot.
  • One safety stop. This prevents free fall when the clamp is not fully closed. (M3 screws)
  • Made from 6061-T6 Aluminum.
  • Made in USA
  • Black Anodized.
  • Used with various lenses.
  • One captive screw. Screw will be about 0.3 above plate surface. If you are planning of using plate with blind hole please check depth of it. You may need shorter screw.

Auction Includes:

  • One 8 inch plate.
  • One 1/4-20 ½ inch captive style screw.
  • One M3 screws attached to the plate.
  • Hex key for ¼-20 screw and M3 screw.
