If you are not familiar with Arca Swiss camera support system please read article: Arca-Swiss (Arca-Type) Systems Explained at DentonImages.com. It will let you understand how system works, what will you need to get started or what should be next on your shopping list. Side also have some independent review products currently on the market. You can also visit my blog http://www.hejnarphoto.blogspot.com for more great ideas, how to $ave and new product information's. Review of my products can be also found at http://www.scvphotoideas.com/
Description:

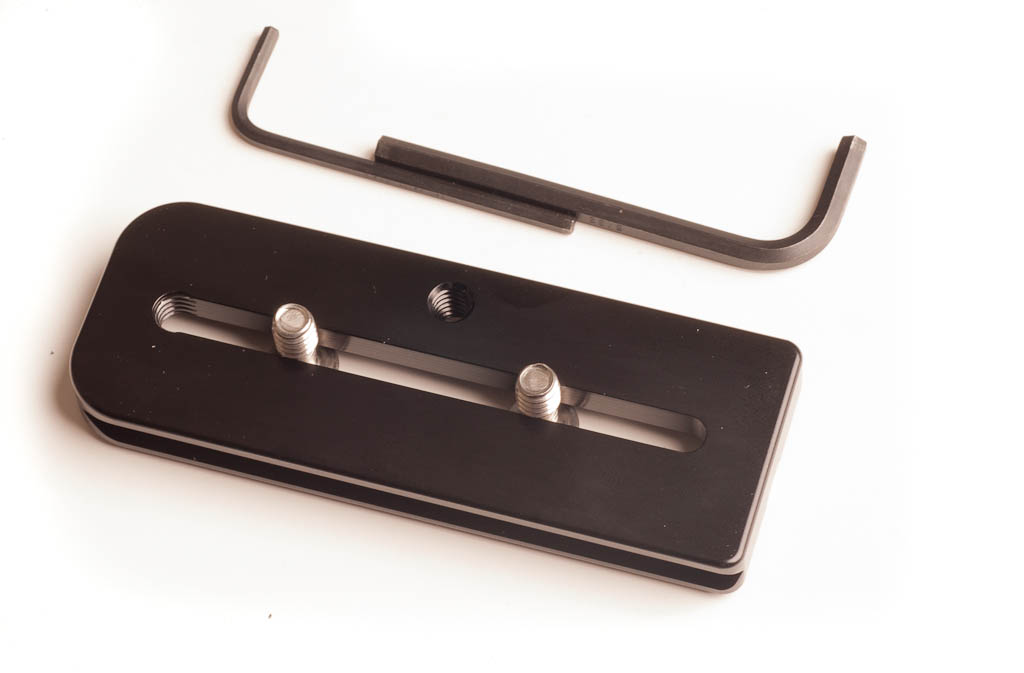

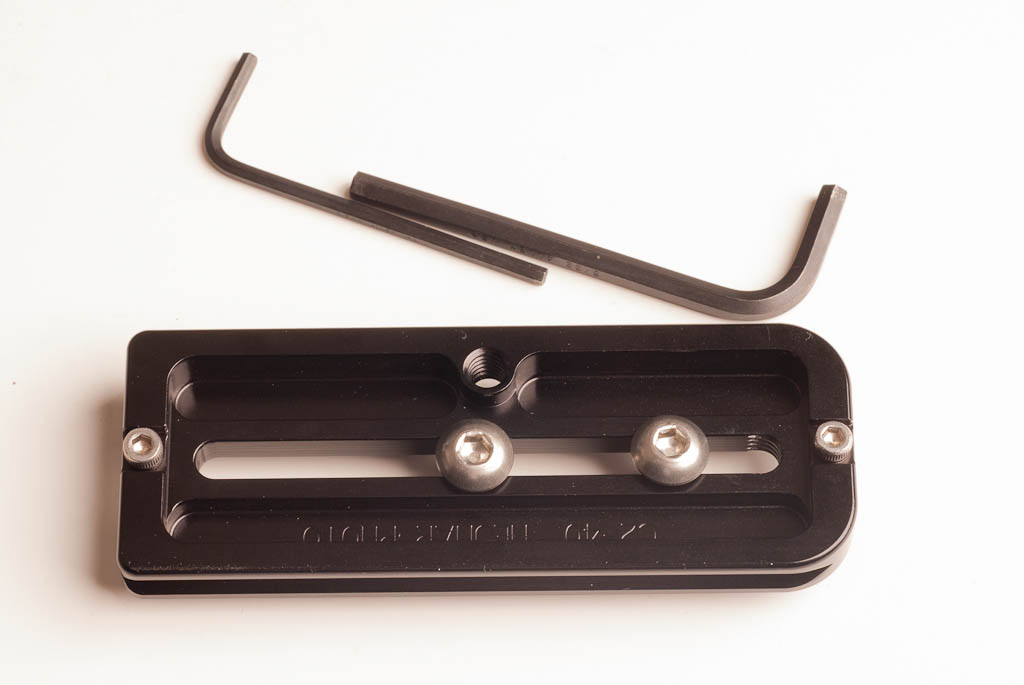

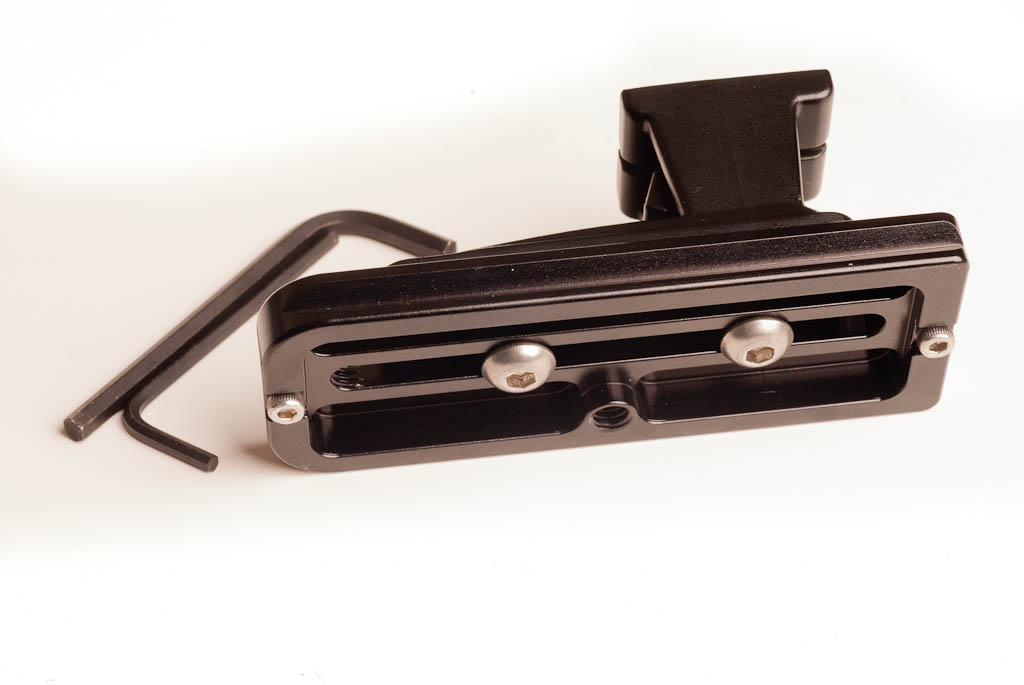

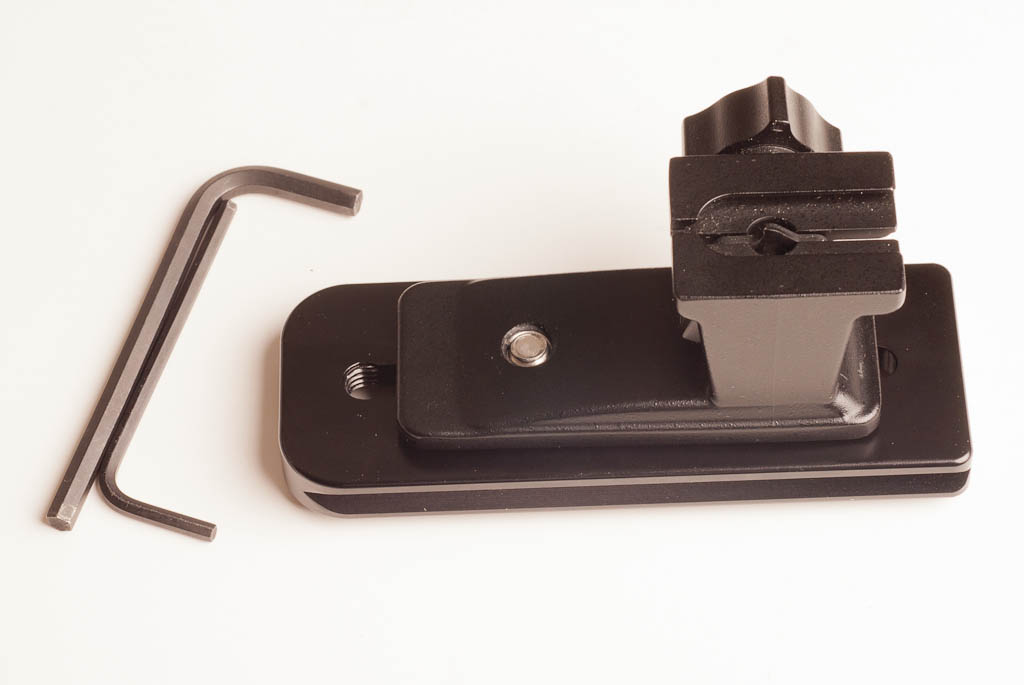

New Hejnar Photo Quick Release 4.00 inch with captive style slot. It can be used with various lenses and other equipment. It is the best quick release system for tripods and monopods when combined with Arca style ball head and quick release clamps. International standard dove-tail rail, compatible with Arca-Swiss type quick release clamps

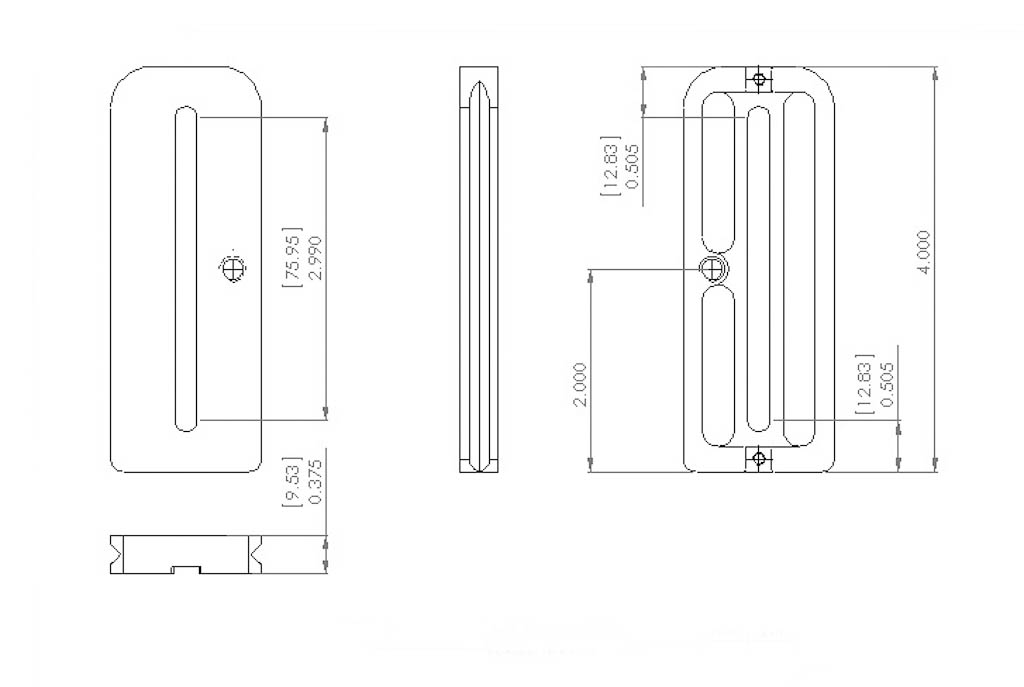

Specification:
- 4.00 inch long
- 1.5 inch wide
- 3/8 inch thick.
- Weigth 48g (1.8oz)
- One captive style slot.
- One 1/4-20 taped hole for accessories
- Double-dovetail design allows for dual clamping surfaces on rail
- Two safety stops. This prevents free fall when the clamp is not fully closed. (M3 screws)
- Made from 6061-T6 Aluminum.
- Made in USA
- Black Anodized.
- Used with various lenses.
- Two captive style screws. Screw will be about 0.3 above plate surface. If you are planning of using plate with blind hole please check dept of it. You may need shorter screw.
Auction Includes:
- One 4.00 inch plate.
- Two 1/4-20 ½ inch captive style screw.
- Two M3 screws attached to the plate.
-
