PART C1-350
Please note that not all items shown on the pictures may be included in the auction, and they are for presentation purposes only. To determine items for sale please see reference in the section "Auction Includes".
Please check out my other auctions for more great products and big savings.
Click to view super sized image
If you are not familiar with Arca Swiss camera support system please read article: Arca-Swiss (Arca-Type) Systems Explained at DentonImages.com. It will let you understand how system works, what will you need to get started or what should be next on your shopping list. Side also have some independent review products currently on the market. You can also visit my blog http://www.hejnarphoto.blogspot.com for more great ideas, how to $ave and new product information's. Review of my products can be also found at http://www.scvphotoideas.com/
Description:

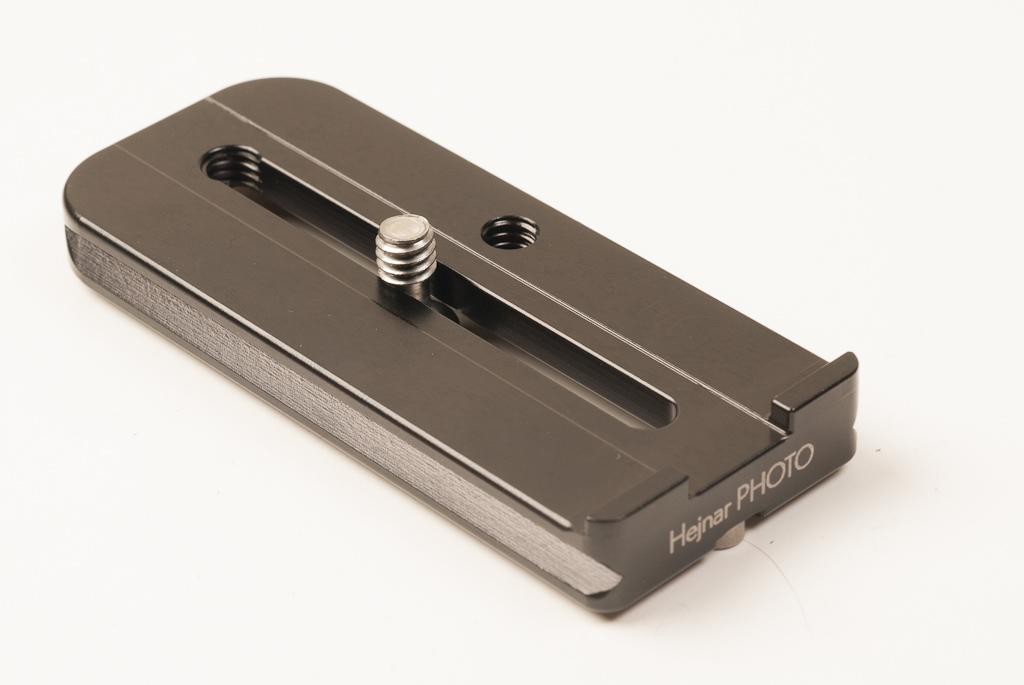

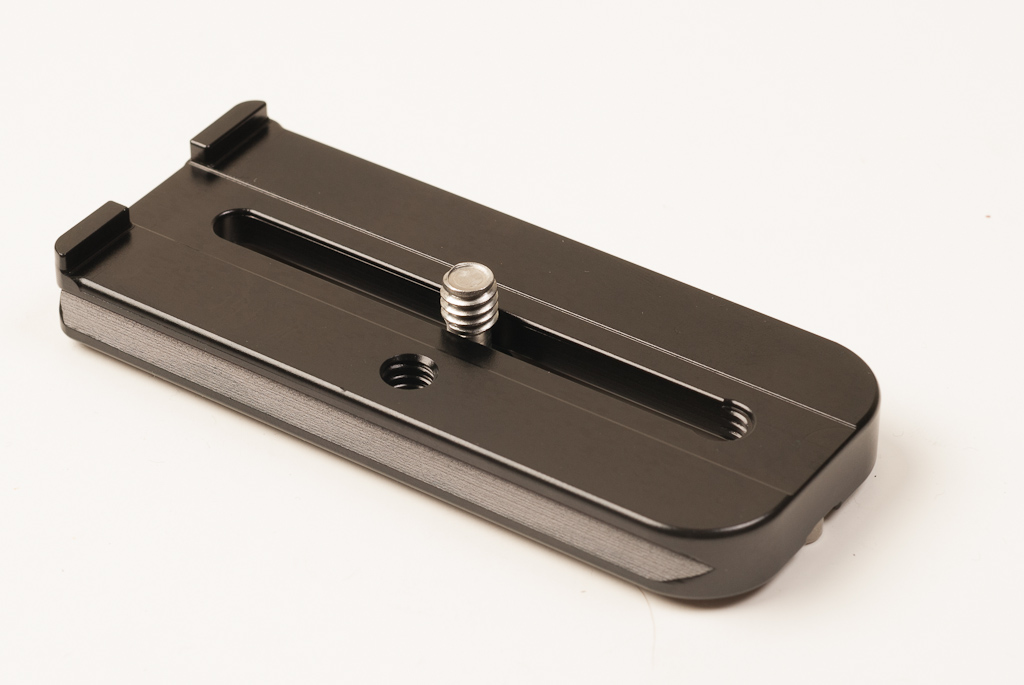

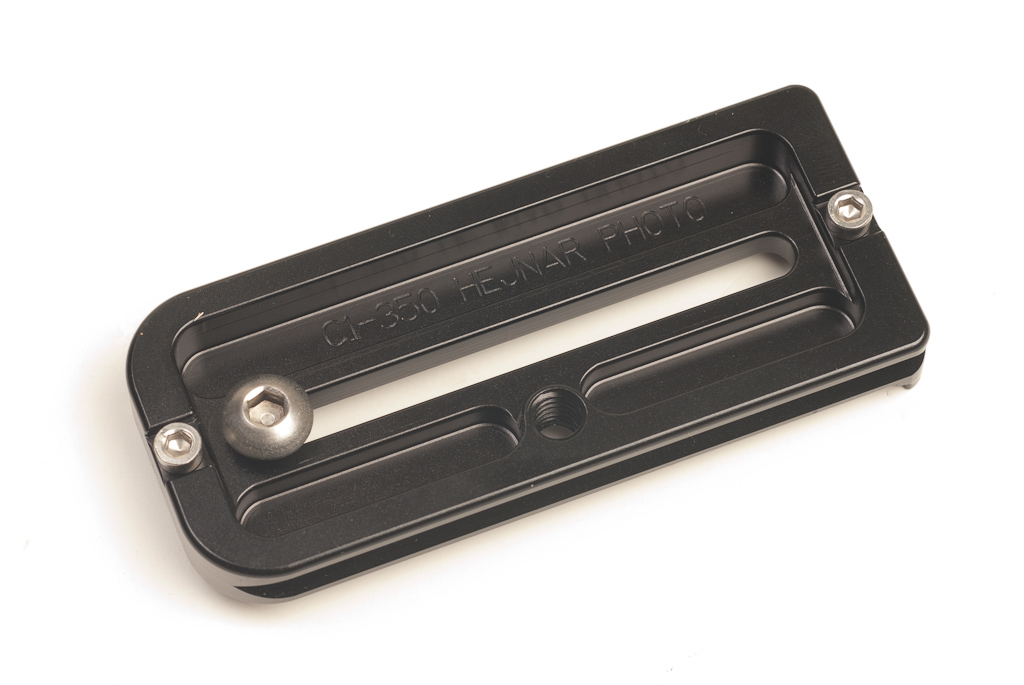

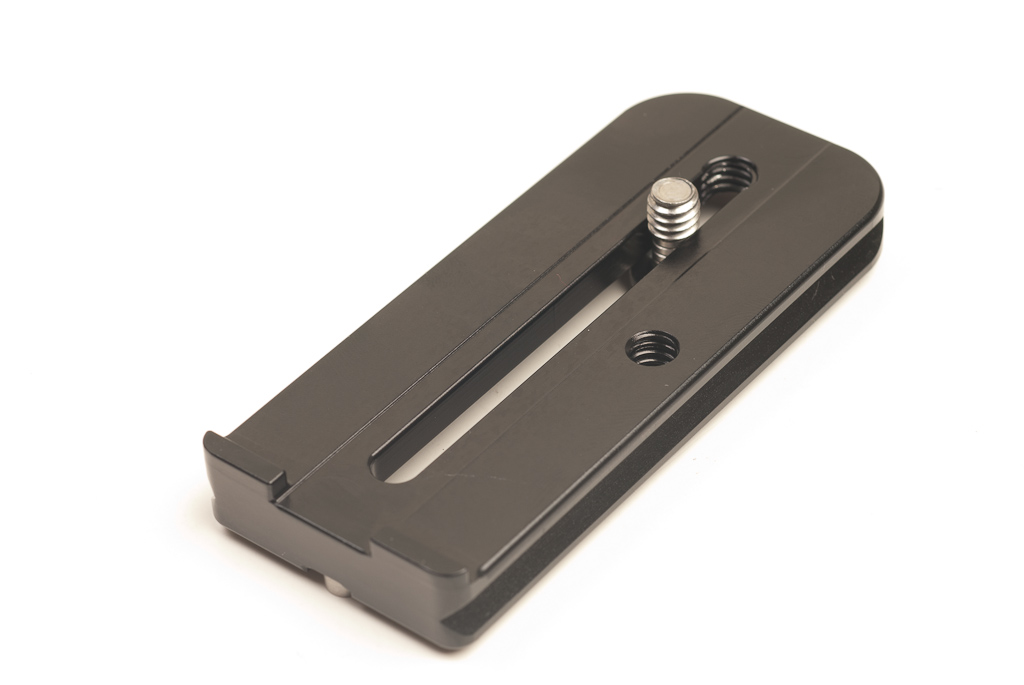

New Hejnar Photo Quick Release 3.50 inch rail with ridge. All single mounting hole lenses required anti twisting ridge to prevent lens rotating when mounted. It is the best quick release system for tripods and monopods when combined with Arca style ball head and quick release clamps. International standard dove-tail rail, compatible with Arca-Swiss type quick release clamps. If you are not sure what size of plate you need please read this article in my blog - http://hejnarphoto.blogspot.com/2011/10/lens-plate-selection.html

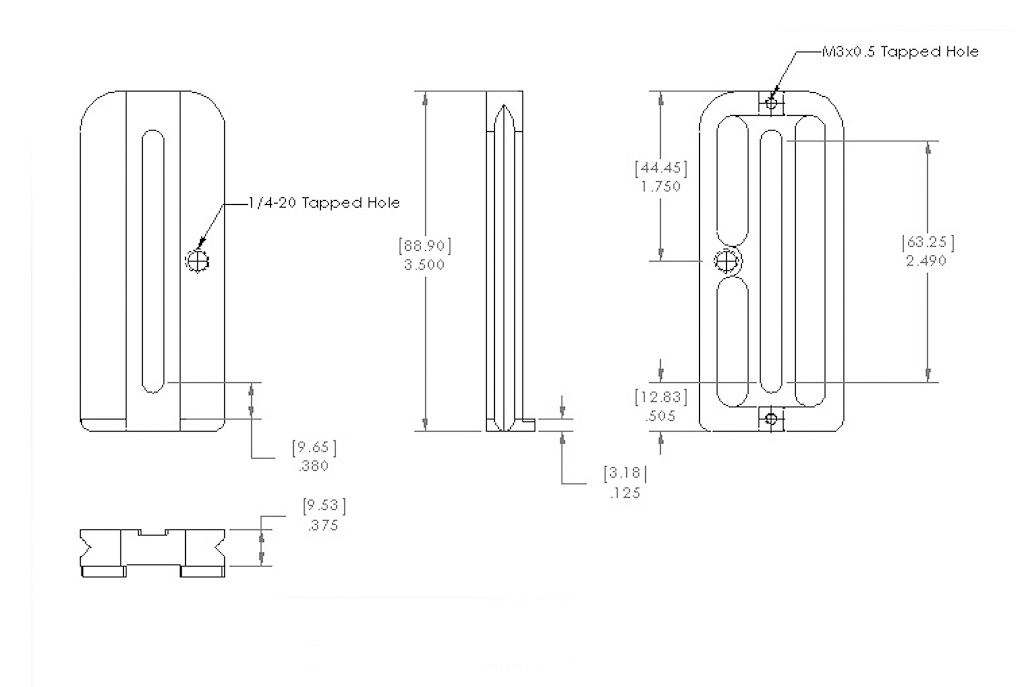

Specification:
- 3.50 inch long
- 1.5 inch wide
- 3/8 inch thick plus 1/8 ridge height.
- Weight 45g (1.6oz)
- One captive style slot.
- Double-dovetail design allows for dual clamping surfaces on rail
- Two safety stops. This prevents free fall when the clamp is not fully closed. (M3 screws)
- Made from 6061-T6 Aluminum.
- Made in USA
- Black Anodized.
- Used with various lenses.
- One screw. Screw will be about 0.3 above plate surface. If you are planning of using plate with blind hole please check dept of it. You may need shorter screw.

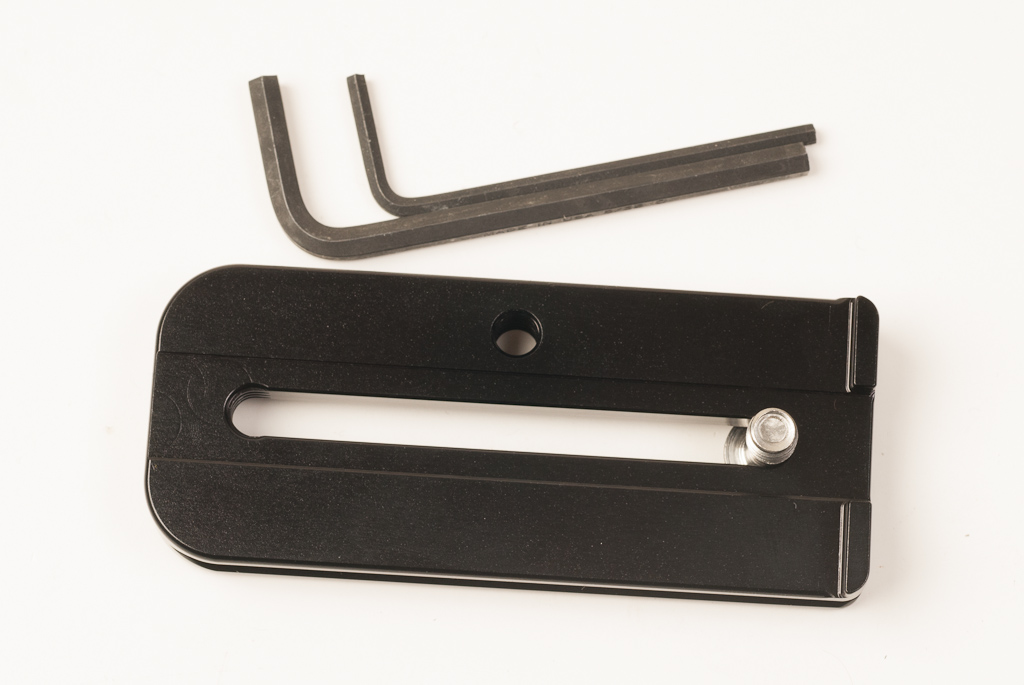

Auction Includes:
- One 3.50 inch plate.
- One 1/4-20 ½ inch captive style screw.
- Two M3 screws attached to the plate.
- Hex key for ¼-20 screw and M3 screw.
-
Questions
If you have question about my product please read FAQ. If this does not answer your question please drop me a line.
